Bootstrapping

Definition: Bootstrapping is a technique where a simple program initiates a more complex system of programs. In the context of compilers, it often involves the process of writing a compiler for a programming language using another compiler written in the same language. This self-compiling process allows for the creation of more sophisticated compilers.

Example: Consider the BIOS (Basic Input/Output System), which initializes and tests hardware, peripherals, and external memory devices when a computer boots. In compiler design, bootstrapping might involve writing a compiler for a language A using a compiler written in the same language A.

T-Diagrams:

Definition: T-diagrams are a graphical notation used to represent the relationships between different programming languages in the context of compiler design. The notation takes the form of A ---(C)---> B, where a compiler written in language C processes source code in language A and produces executable code in language B.

Full Bootstrapping:

Goal: The goal of full bootstrapping is to implement a compiler for language X on a machine M, given the presence of a language C compiler/assembler on the same machine.

Steps:

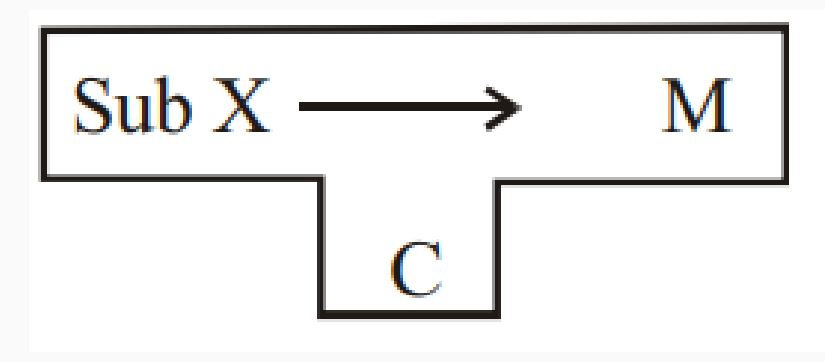

  1. Write Compiler for Subset X in C:
  2. Begin by writing a compiler for a small part (subset) of language X using the language C. Compile this on machine M, where the C compiler already exists.

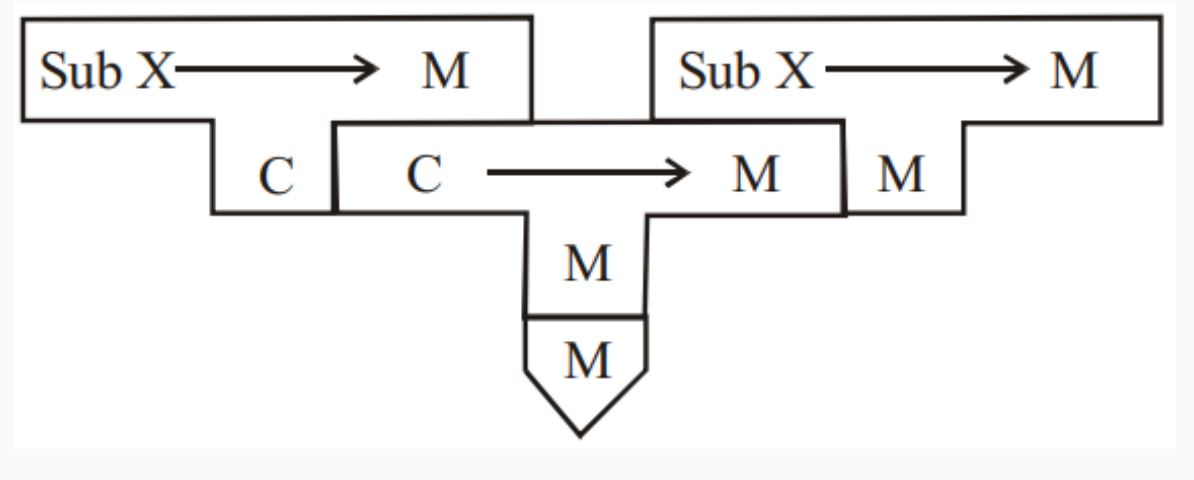

  1. Compile Compiler for Sub X:
  2. Use the existing language C compiler to compile the compiler written in Step 1. This creates a compiler that can process the subset language Sub X.

  1. Translate Subset Compiler (Sub X):
  2. Translate the subset compiler (Sub X) written in Step 1 into the subset language (Sub X). This is a necessary step in the process.

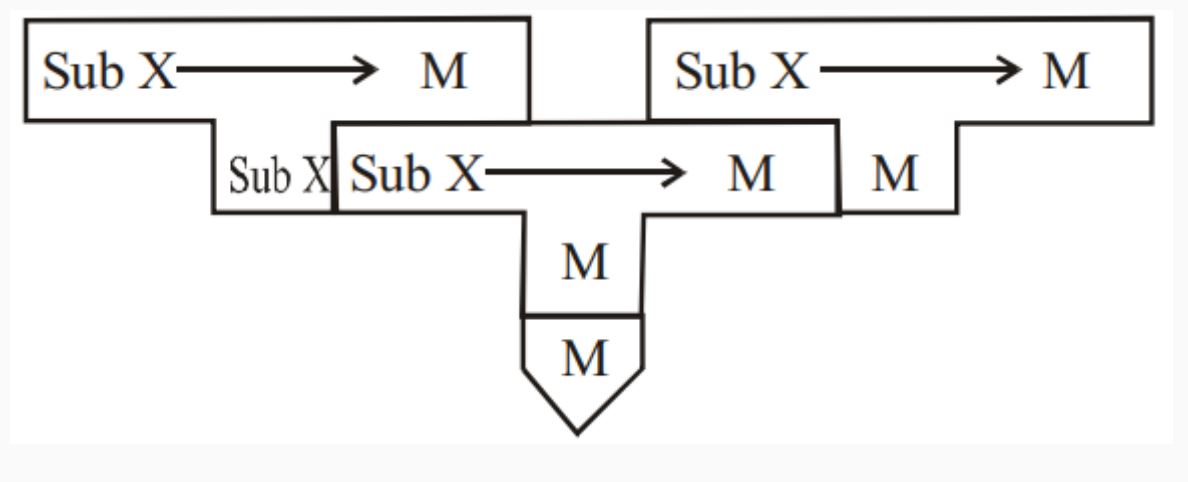

  1. Compile Subset Compiler (Sub X):
  2. Compile the subset compiler (Sub X) from Step 3 using the compiler built in Step 2. This further refines the compiler for Sub X.

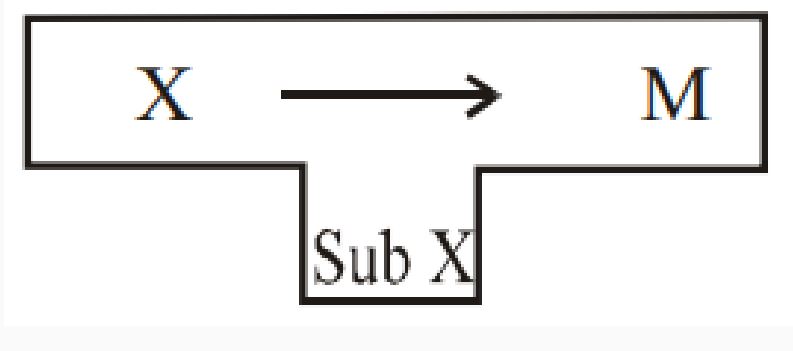

  1. Extend Subset Language (Sub X):
  2. Extend the subset language (Sub X) compiler from Step 3 into a compiler for the full language X. Importantly, this step is still performed using only the subset language Sub X.

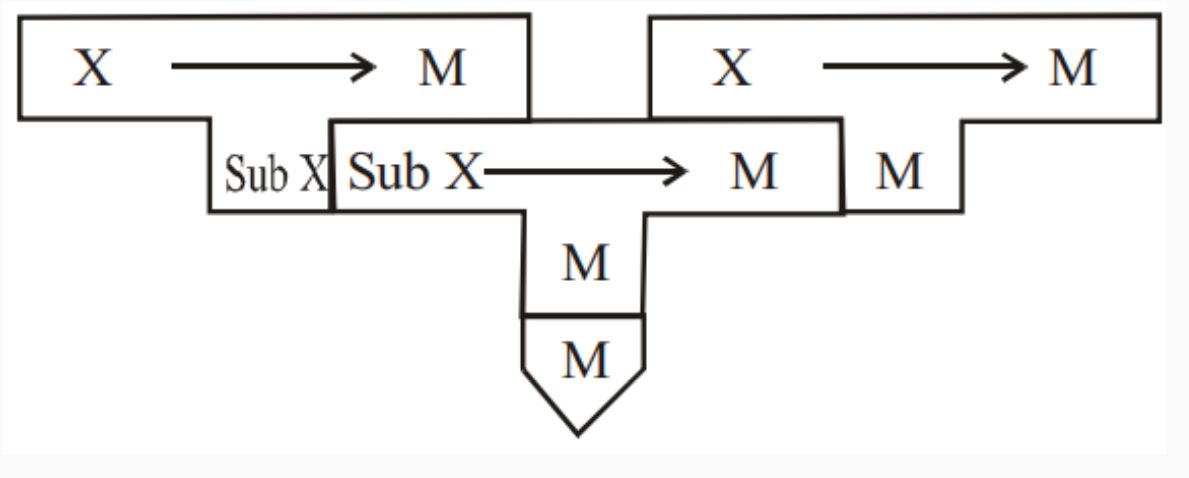

  1. Compile Full Language Compiler:
  2. Finally, compile the full language X compiler using the compiler built in Step 4. At this point, you have a compiler for the full language X implemented on machine M.

This comprehensive process demonstrates the self-sustaining nature of bootstrapping, where each step builds upon the capabilities of the previous one, ultimately leading to the creation of a compiler for a more complex language.

Simple Bootstrapping:

Process: If a compiler or interpreter already exists for the language A on the target machine M, the process of bootstrapping is simplified.
