ARTA: Automatic Requirement Testability Analyzer
Morteza Zakeri†
† Ph.D., Computer Science, ACM Member
Version 0.1.3 (20, April 2024) ├ Download [PDF] version
Abstract— Software testability is the propensity of software artifact to reveal its existing defects. Software requirements are crucial artifacts in developing software. Requirements specifications are used in both the functional and acceptance testing to ensure that a program meets its requirements. A testable requirement increases the effectiveness of testing while decreasing the cost and time. In this project, we define requirement testability in terms of requirements smells and propose a measuring method to compute requirement testability.
Index Terms: Software requirement, requirement testability, requirement smells, expert system
1 Introduction
The achievement of the quality of software requirements is the first step towards software quality. Natural language is the main representation means of industrial requirements documents, which implies that requirements documents are inherently ambiguous. A Requirements Smell is an indicator of a quality violation, which may lead to a defect, with a concrete location and a concrete detection mechanism.
Unfortunately, there is no publicly available tool and benchmark to detect requirement smells and measure the requirements quality. ARTA is a research project at IUST Reverse Engineering Laboratory aimed at detecting requirement smells and measuring requirement testability in all kinds of requirements expressed in natural languages.
2 Tool support
ARTA is a web-based software requirement analysis tool using the state-of-the-art natural language processing (NLP) and statistical machine learning techniques to analyze the software requirement.
An online demo of ARTA is available on
http://arta.iust-parsa.ir/.
You can login with following credential:
- Demo username: User
- Demo password: arta@IUST
and watch the examples requirements.
2.1 Requirement analyzer
Requirement analyzer detects smelly words in each requirement, recognize their type, and provides a list of smelly words. The web interface also highlights smelly words in the requirement text.

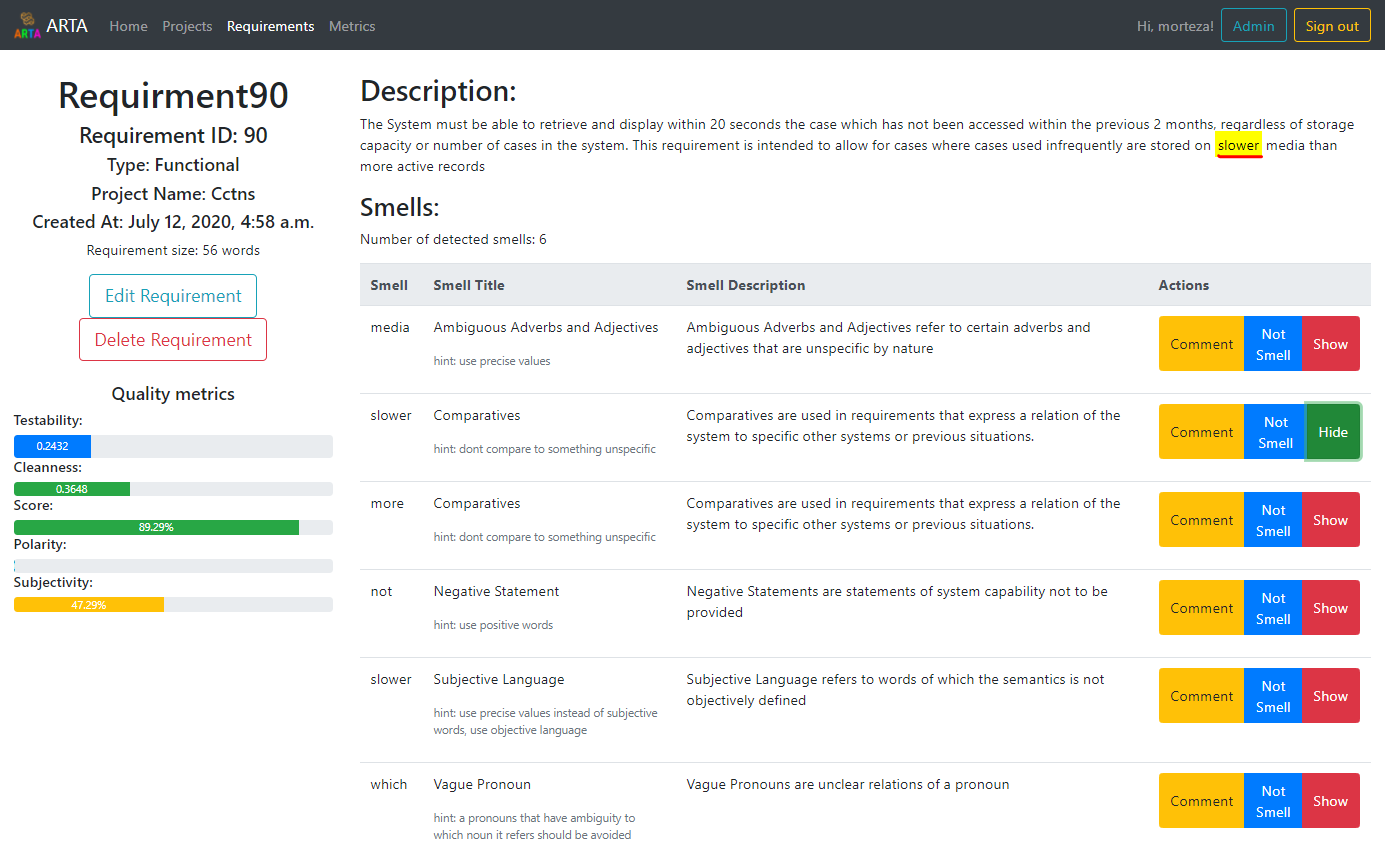

Figure 1 shows ARTA requirement smell analyzer and detector.
Figure 1: Requirement smell detector in ARTA
2.2. Labeling module

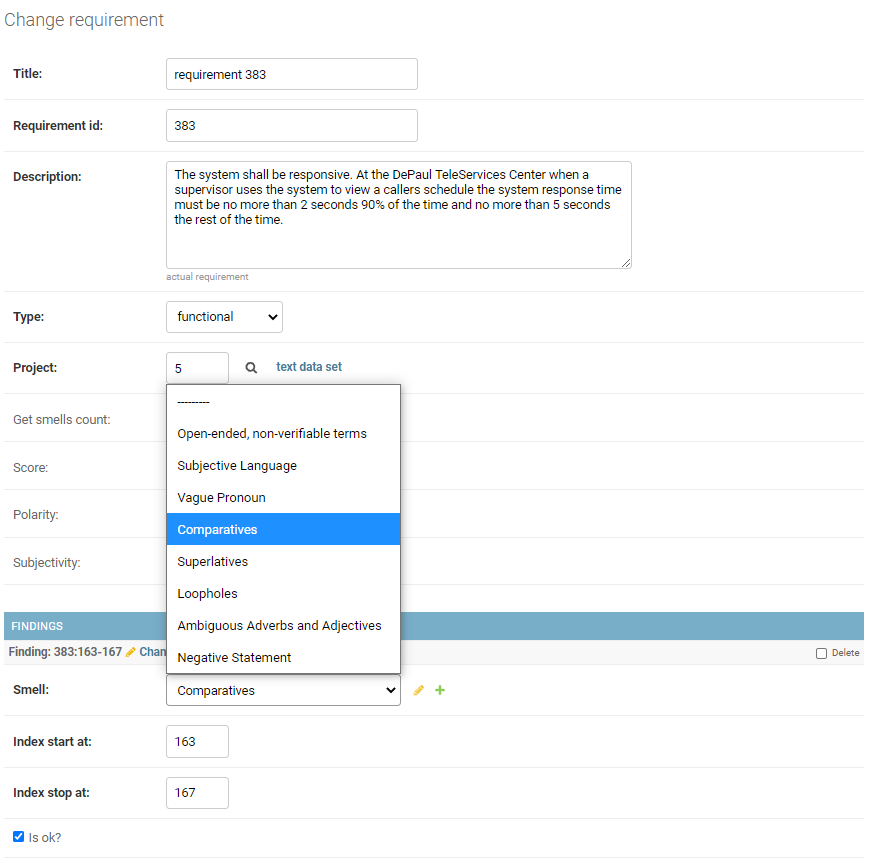

ARAT web interface also provides an ability to label each requirement with corresponding smells. Figure 2 shows ARTA requirement labeling module.
Figure 2: Requirement smell labeling in ARTA
2.3 Data model

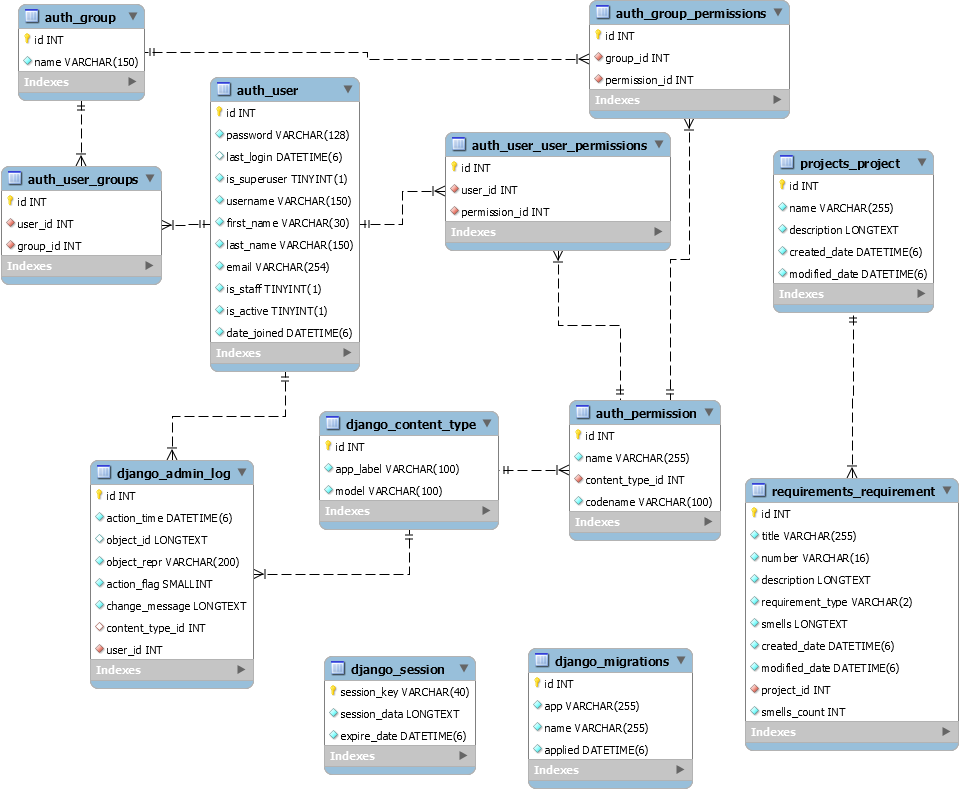

Figure 3 shows ARTA database ERD model. All projects and their requirements are kept in a MySQL database.
Figure 3: ARTA data model
3 Publication(s)
- [1] Zakeri-Nasrabadi, M., & Parsa, S. (2024). Natural language requirements testability measurement based on requirement smells. Neural Computing and Applications. https://doi.org/10.1007/s00521-024-09730-x
4 News
-
2024-04-28: The ARTA (automated requirements testability analyzer) tool's full implementation is now publicly available.
-
2021-10-20: Initial/partial release. The full version of source code will be available as soon as the relevant paper(s) are published.
4 FAQ
For any question please contact m-zakeri@live.com
